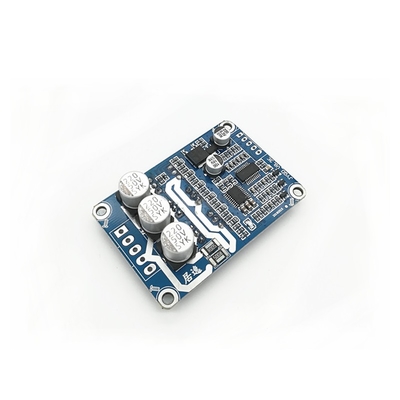

JYQD-V8.3E BLDC Motor Controller 12-36VDC 15A Sensorless

МОК:	1
цена:	$7.90-9.90

Данные по деталей

Описание продукта

Подробная информация

Входное напряжение:

12-36Vdc

Рейтинг власти:

300 Вт

Максимальная мощность:

500 Вт

Максимальный ток:

15A

Алгоритм управления:

прямоугольная волна

Размеры:

67 мм х 36,5 мм x 16,6 мм

Управление скоростью:

PWM/0-5V

Скорость обратной связи:

Да

Рабочая температура:

-10°C до 60°C

Частота ШИМ:

1K-20 кГц

Круг обязаностей PWM:

0-100%

Амплитуда ШИМ:

5 В

Управление портом расстояния:

2,54 мм

Расстояние порта электроэнергии:

3.96mm

Мотор тип:

Sensorless

Выделить:

BLDC motor controller 15A sensorless

BLDC driver board 12-36VDC

motor controller with warranty

Описание продукта

JYQD-V8.3E BLDC Motor Controller

12-36VDC input, max current 15A for sensorless motor

Key Specifications

Model No.: JYQD-V8.3E
Power Input: 12-36VDC
Rated Power: 300W
Max Power: 500W
Max Current: 15A
Suitability: Sensorless motor
Control Algorithms: Square wave
Dimensions: 67mm × 36.5mm × 16.6mm
Speed Control: PWM/0-5V
Speed Feedback Signal Output: Yes
Working Temperature: -10℃ to 60℃

Protection Features

Over-current, short circuit, over voltage, under voltage, locked rotor, over-heating

Product Overview

The JYQD-V8.3E BLDC motor driver board is a direct current brushless driver board designed to control DC brushless motors with precise speed regulation from 0 to 100%. Its square wave control algorithms ensure stability and accuracy, making it suitable for various applications.

Applications

Robotics
Electric bicycles
Electric wheelchairs
Electric scooters
Hub motors
Electric skateboards
Drones
Hoverboards
Electric unicycles
Electric mopeds
Electric go-karts
RC cars
Industrial robots
Logistics conveyor belts
Automation equipment
CNC machines
Self-propelled lawn mowers
Consumer electronics
Home appliances
Industrial equipment

Product Appearance

Application Guidelines

Confirm that the voltage and power parameters of the motor do not exceed the specified range.
This driver board comes without housing and heatsink. It can drive motors below 60W without any heatsink but requires normal ventilation.
The 5V output port is only for external potentiometer or switch for speed adjustment, commutation and enabling operation. Do not connect external power equipment.

Wiring Diagram

Control Port

5V: Driver board internal output voltage for external potentiometer or switch
Z/F: Rotating direction control ports (5V high level = Forward, 0V/GND = Reverse)
VR: Speed control port (Analog voltage 0.1V-5V or PWM 1K-20KHz, 5V amplitude)
M: Speed pulse signal output (5V pulse signal)
GND: Driver board internal control ground

Power Port

MA, MB, MC: Motor phase connections
GND: DC negative
VCC: DC positive

Installation Notes

Use shielded wires if the distance between driver board and motor exceeds 50cm
Control port distance: 2.54mm
Power port distance: 3.96mm
Ensure insulation between driver MOSFET and heatsink/installation plate

Dimensions

Manufacturing Process

Packaging Information

The BLDC motor driver is well packed in an individual antistatic bag.

Frequently Asked Questions

Lead Time

Sample: 5 days
Mass order: 2-3 weeks

Minimum Order Quantity

1 set for all series products

Warranty

12 months from the date of delivery

Technical Support

We offer 1-on-1 service and technical support
